Amphenol RF AMC Connectors & Cable Assemblies
Amphenol RF Micro Coaxial (AMC) Connectors and Cable Assemblies are designed for use in applications with 50Ω impedance requirements. Amphenol RF AMC Connectors feature a low profile of 2.5mm off the board. They have an extremely small board footprint that measures 3mm x 3mm. Typical applications include wireless internet, wireless infrastructure, inventory/barcode scanners, and more.
Features
- 100% compatible with U.FL interfaces
- Easy snap-on/off mating
- Ultra-low profile (2.5mm mating height)
- Small footprint measures 3mm2
- Right-angle plugs pre-installed on 0.81mm, 1.13mm, 1.32mm, or 1.37mm coaxial cable and tested prior to shipment
Applications
- Wireless internet (Wi-Fi®, WiMax®, EvDO/EvDV solutions)
- Wireless infrastructure (cellular base stations)
- RFID
- BLUETOOTH®
- Inventory/barcode scanners
- Handheld devices
AMC Connectors
Amphenol RF AMC4 RA to TNC/RP-TNC Jack IP67 Cable Assemblies
1.13mm micro-cable type and feature a 50Ω impedance and 6GHz maximum frequency.
Amphenol RF AMC4 to FAKRA Cable Assemblies
Provide an AMC4 right-angle plug to a FAKRA straight plug with a 1.13mm micro-cable.
Amphenol RF FAKRA papuntang AMC Cable Assembly
Isang FAKRA connector na may micro-miniature AMC connector sa isang ultra-flexible 1.37mm coax cable.

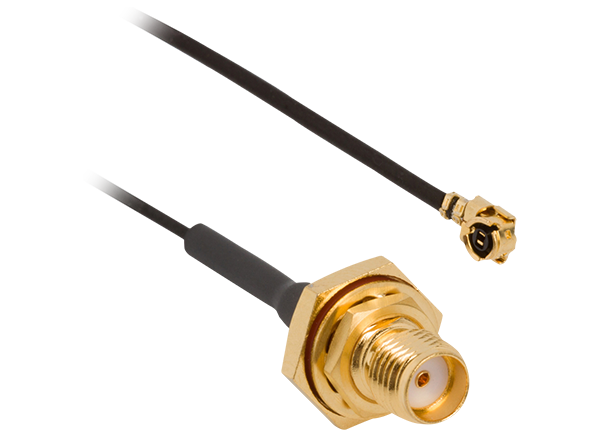

Amphenol RF SMA to AMC Cable Assemblies
Standard bulkhead SMA jack (female) on one end & right-angle AMC cable plug (male) on the other end.
Amphenol RF N-Type to AMC Cable Assemblies
Features an N-Type bulkhead jack to AMC plug with an RG-178 cable ranging from 50mm to 300mm.
Amphenol RF AMC Jumpers
U.FL Compatible, designed for use in applications with 50Ω impedance requirements.
Amphenol RF SMA to AMC Ultraminiature Cable Assemblies
Offers a DC to 6GHz frequency range, 50Ω impedance rating, and 500MΩ insulation resistance.
Related Connectors
Amphenol RF Micro-Miniature Coaxial Connectors
6GHz, 50Ω interconnect system is available in surface-mount, edge-card, and cable connectors.
Amphenol RF Mga 5G Wireless Connector
Dinisenyo upang matugunan ang 5G next-generation na mga pamantayan ng mobile network.
Amphenol RF Connectors for Green Energy Technology
A variety of series for AMR, AMI, SmartMeter and SmartGrid.
