245132-0899

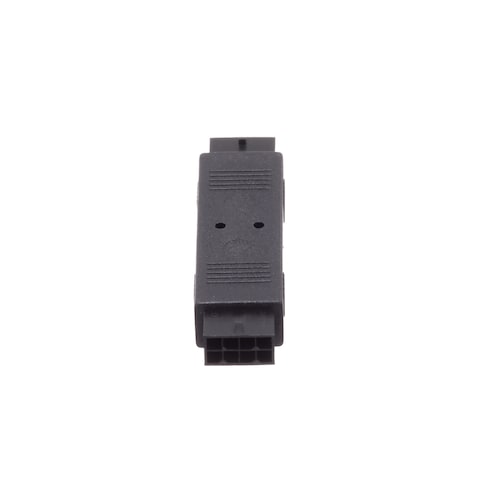

Name: Molex 245132-0899
Brand: Molex
SKU: 538-245132-0899
Price: 603.2 PHP
Availability: InStock

Reference lang ang mga larawan
Tingnan ang Mga Ispesipikasyon ng Produkto

Mouser #:

538-245132-0899

Mfr. #:

245132-0899

Mfr.:

Molex

Paglalarawan:

Headers & Wire Housings Microfit 3.0 8Ckt 50mm OM

Datasheet:

245132-0899 Datasheet

ECAD Model:

I-download ang libreng Library Loader para i-convert ang file na ito para sa iyong ECAD Tool. Matuto nang higit pa tungkol sa ECAD Model.

Higit Pang Impormasyon

Alamin pa ang tungkol sa Molex 245132-0899

May Stock: 257

Stock:: 257 Maaaring Ipadala Agad

May nangyaring di-inaasahang error. Subukan ulit mamaya.
Lead-Time ng Pabrika:: 18 (na) Linggo Tinatayang oras ng paggawa sa pabrika para sa mga bilang na mas marami kaysa ipinakita.

Ipasok ang Dami:

Minimum: 1 Mga Multiple: 1

Presyo ng Unit:

₱-.--

Ext. Presyo:

₱-.--

Est. Taripa:

Presyo (PHP)

Dami	Presyo ng Unit	Ext. Presyo
	₱603.20	₱603.20
	₱513.88	₱5,138.80
	₱491.26	₱9,825.20
	₱468.06	₱23,403.00
	₱444.86	₱44,486.00
	₱431.52	₱86,304.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Katangian ng Produkto	Value ng Attribute	Pumili ng Attribute
Manufacturer:	Molex
Kategorya ng Produkto:	Mga Header at Wire Housing
RoHS:
Produkto:	Connector Kits
Uri:	Adapter
Dami ng Posisyon:	8 Position
Pitch:	3 mm (0.118 in)
Dami ng Row:	2 Row
Istilo ng Termination:	Crimp
Anggulo ng Mounting:	Straight
Plating ng Contact:	Tin
Series:	245132
Pangalang pangkalakal:	Micro-Fit 3.0
Gauge ng Wire:	20 AWG
Minimum na Operating Temperature:	- 20 C
Maximum na Operating Temperature:	+ 80 C
Brand:	Molex
Materyal ng Contact:	Tin
Rating ng Current:	3 A
Kulay ng Housing:	Black
Materyal ng Housing:	Polybutylene Terephthalate (PBT)
Uri ng Produkto:	Headers & Wire Housings
Dami ng Pack ng Pabrika:	100
Subcategory:	Headers & Wire Housings
Rating ng Voltage:	300 VDC
Mga Alias ng # ng Piyesa :	02451320899
Timbang ng Unit:	42.034 g

Nahanap na mga produkto:

Para maipakita ang mga katulad na produkto, pumili ng kahit na isang checkbox man lang

Pumili ng kahit isang checkbox sa itaas para magpakita ng katulad na produkto sa kategoryang ito.

Mga Piniling Attribute: 0

I-filter ang Dokumento:

Datasheet

245132-0899 Datasheet

PCN

Product Change Notification (PDF)

RoHS Certificate (PDF)

CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8544429090
JPHTS:: 854442099
KRHTS:: 8544422090
TARIC:: 8544429090
MXHTS:: 8544429999
BRHTS:: 85444200
ECCN:: EAR99

Power Solutions

Molex is uniquely equipped to provide power delivery and power distribution in wire-to-wire, wire-to-board, and board-to-board configurations. Molex's wide selection of power connectors ranges from versatile to popular and proven. Designers can achieve power delivery and power distribution with Molex's vast array of power connectors.

Fit Family Connectors

Molex Fit Dual-Row Connectors provide power delivery and power distribution in wire-to-wire, wire-to-board, and board-to-board configurations. Molex Fit power connectors range from the 2.50mm pitch Nano-Fit to the 5.7mm pitch Mega-Fit connectors. These off-the-shelf connectors can be modified, customized, or adapted to meet virtually any application need.

Micro-Fit Overmolded Plug Adapters

Molex Micro-Fit Overmolded Plug Adapters eliminate the need to stock both receptacle and plug version of cables. Available in 2-row configurations of 2, 4, 6, 8, and 10 circuit models, these adapters unify femable cable assemblies together, preventing crimping issues in the process. The molex micro-fit plug adapters use a polybutylene terephthalate (PBT) housing and are ideal for car infotainment systems, appliances like washers and ovens, and charging stations.

Industrial Solutions

Molex Industrial Solutions offer robust products designed for the harshest environmental conditions to deliver safe and reliable connections. These products also provide protection from contamination, moisture, or vibration. The Molex Industrial Solutions lineup features high performance and a long product life.
