T1235T-8I

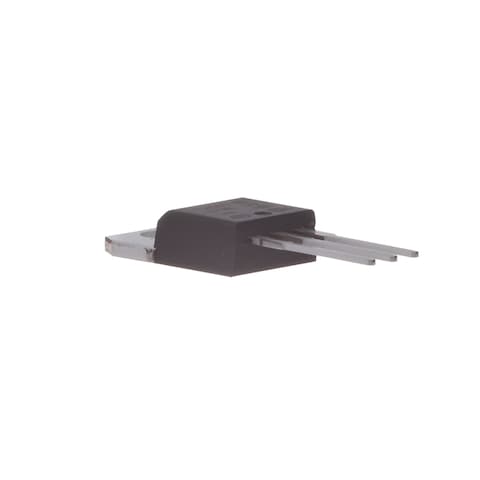

Name: STMicroelectronics T1235T-8I
Brand: STMicroelectronics
SKU: 511-T1235T-8I
Price: 93.96 PHP
Availability: InStock

Reference lang ang mga larawan
Tingnan ang Mga Ispesipikasyon ng Produkto

Mouser #:

511-T1235T-8I

Mfr. #:

T1235T-8I

Mfr.:

STMicroelectronics

Paglalarawan:

Triacs 12 A Snubberless Triac

Kumpletuhin ang Iyong Disenyo

Datasheet:

T1235T-8I Datasheet (PDF)

ECAD Model:

I-download ang libreng Library Loader para i-convert ang file na ito para sa iyong ECAD Tool. Matuto nang higit pa tungkol sa ECAD Model.

Higit Pang Impormasyon

Alamin pa ang tungkol sa STMicroelectronics T1235T-8I

May Stock: 2,267

Stock:: 2,267 Maaaring Ipadala Agad

May nangyaring di-inaasahang error. Subukan ulit mamaya.
Lead-Time ng Pabrika:: 15 (na) Linggo Tinatayang oras ng paggawa sa pabrika para sa mga bilang na mas marami kaysa ipinakita.

Ipasok ang Dami:

Minimum: 1 Mga Multiple: 1

Presyo ng Unit:

₱-.--

Ext. Presyo:

₱-.--

Est. Taripa:

Presyo (PHP)

Dami	Presyo ng Unit	Ext. Presyo
	₱93.96	₱93.96
	₱23.78	₱237.80
	₱23.61	₱2,361.00
	₱23.55	₱23,550.00
	₱22.68	₱226,800.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Katangian ng Produkto	Value ng Attribute	Pumili ng Attribute
Manufacturer:	STMicroelectronics
Kategorya ng Produkto:	Mga Triac
RoHS:
Series:	T1235T-8I
On-State RMS Current - It RMS:	12 A
Hindi Umuulit na On-State Current:	90 A, 95 A
Rated Repetitive Off-State Voltage VDRM:	800 V
Off-State Leakage Current @ VDRM IDRM:	5 uA
On-State Voltage:	1.6 V
Holding Current Ih Max:	40 mA
Gate Trigger Voltage - Vgt:	1.3 V
Gate Trigger Current - Igt:	35 mA
Minimum na Operating Temperature:	- 40 C
Maximum na Operating Temperature:	+ 150 C
Isitilo ng Mounting:	Through Hole
Package / Case:	TO-220AB-3
Packaging:	Tube
Brand:	STMicroelectronics
Uri ng Produkto:	Triacs
Dami ng Pack ng Pabrika:	1000
Subcategory:	Thyristors
Pangalang pangkalakal:	Snubberless
Timbang ng Unit:	2.200 g

Nahanap na mga produkto:

Para maipakita ang mga katulad na produkto, pumili ng kahit na isang checkbox man lang

Pumili ng kahit isang checkbox sa itaas para magpakita ng katulad na produkto sa kategoryang ito.

Mga Piniling Attribute: 0

I-filter ang Dokumento:

Datasheet

T1235T-8I Datasheet (PDF)

PCN

Product Change Notification 2025-7-23 (PDF)

CNHTS:: 8541300000
CAHTS:: 8541300000
USHTS:: 8541300080
JPHTS:: 8541300003
TARIC:: 8541300000
ECCN:: EAR99

T-Series Triacs

STMicroelectronics T-Series Triacs are designed for the ever-increasing number of AC loads in domestic appliance control. These AC appliance switches meet both immunity and high-commutation needs, offering a cost-effective solution. Immunity (dV/dt), and commutation capability (dI/dt)c, and logic level gate current of STMicroelectronics T-Series Triacs are specified. This helps to optimize the power supply and allows direct drive capability through a single resistance between the microcontroller and the Triac, for all 10mA gate types.

Standard Products

STMicroelectronics Standard Products are a broad range of industry-standard and drop-in replacements for the most popular general-purpose analog ICs, discretes, and serial EEPROMs. The Standard Products are manufactured to the highest quality standards with many AECQ-qualified for automotive applications. A comprehensive set of STMicroelectronics design aids, including SPICE, IBIS models, and simulation tools, is available to make adding to a design-in easy.
