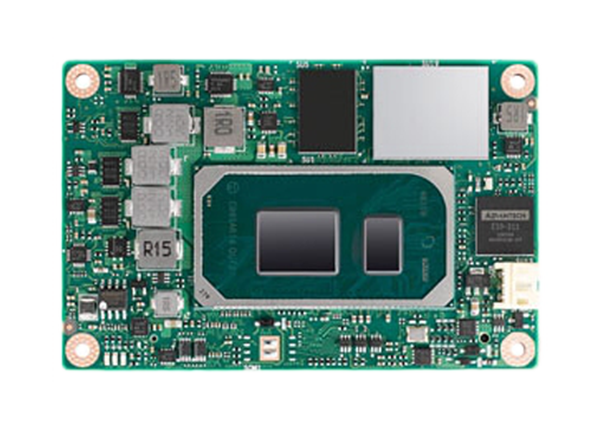

Advantech SOM-7583 Intel® 11th Gen COM Express Mini Module
Advantech SOM-7583 Intel® 11th Gen COM Express Mini Module is a COMe Mini Type-10 module with Intel® Tiger Lake UP3 processors. It has a 16GB LPDDR4X 4266MT/s and IBECC support. It's USB4 compliant and supported by the carrier board design.
Features
- COMe Mini Type-10
- Intel® Tiger Lake UP3 processors
- 16GB LPDDR4X 4266MT/s and IBECC support
- USB4 Compliance supported by carrier board design
- NVMe SSD onboard
- Operating temperatures: Standard 0 ~ 60 °C (32 ~140 °F) or Extended -40 ~ 85 °C (-40 ~ 185 °F)
- Supports SUSI, DeviceOn and Edge AI Suite

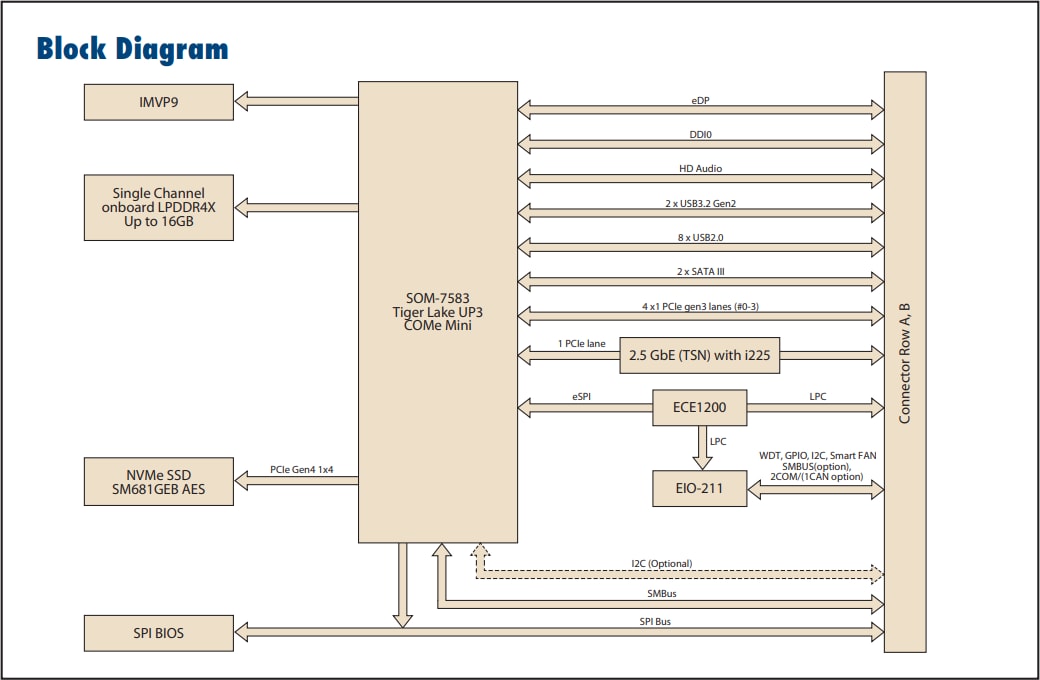

Block Diagram
