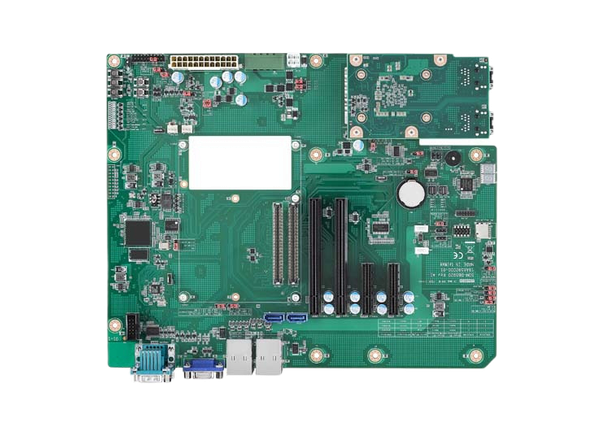

Advantech SOM-DB5920-01A1 COMe Type 7 Development Board
Advantech SOM-DB5920-01A1 COMe Type 7 Development Board features a PICMG COM.0 R 3.0 type 7 pinout. The board is a COM Express® Basic/Compact module. It has 10 Gigabit Ethernet support by OCP mezzanine card.
Features
- PICMG COM.0 R 3.0 Type 7 Pinout
- COM Express ® Basic/Compact module
- 10 Gigabit Ethernet support by OCP mezzanine card
- Extension: PCIe x16, PCIe x8, 2 PCIe x4
- Integrated BMC supports VGA, Dedicated NIC for IPMI, iKVM
- Visible Debug Utility: BIOS 80 Port and Power State

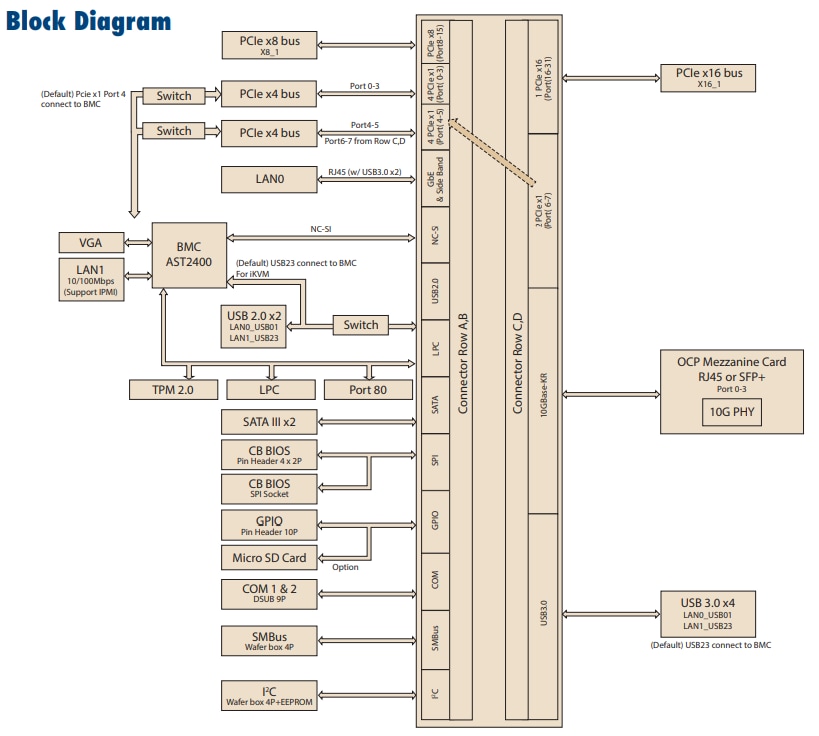

Block Diagram
