Analog Devices Inc. EVAL-ADA4355EBZ Evaluation System

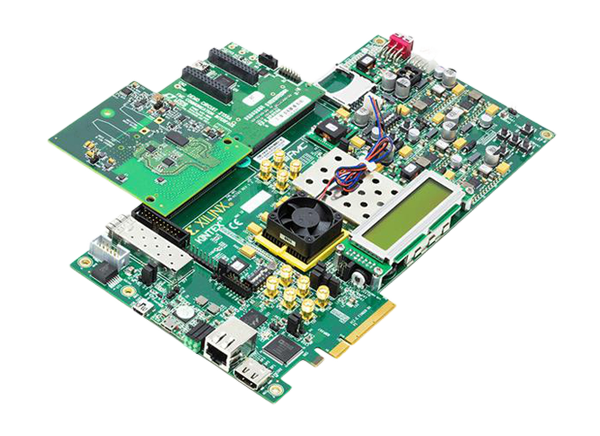

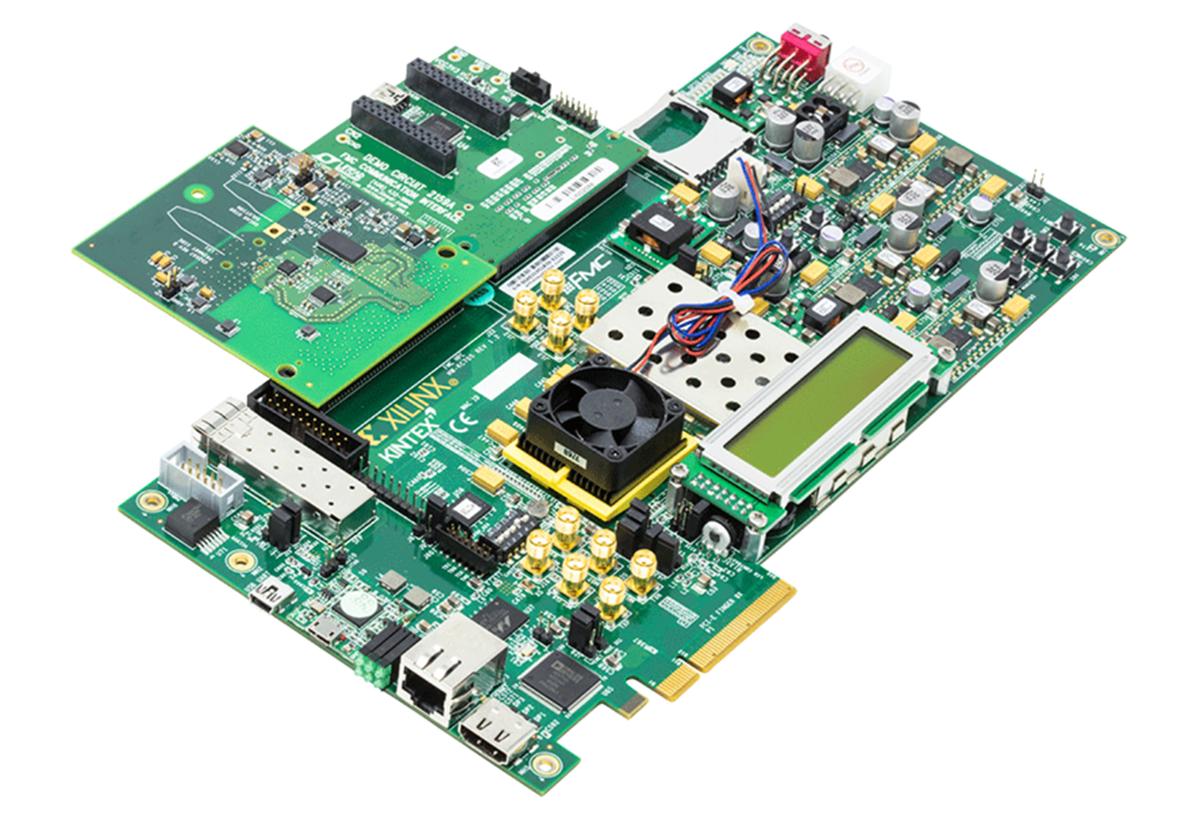

Analog Devices Inc. EVAL-ADA4355EBZ Evaluation System is configured to evaluate the operation of the ADA4355 Receive µModule. The EVAL-ADA4355EBZ system combines the ADI ADA4355 evaluation board with a Xilinx KC705 FPGA evaluation platform. The KC705 provides abundant memory, GPIOs, and processing power to perform all control and data manipulation functions.
The ADI EVAL-ADA4355EBZ Evaluation System uses a MATLAB-based, highly intuitive graphical user interface for all system control and data processing.
Features
- Complete hardware and software required to evaluate ADA4355 micro-module
- Only four connections required
- 12V power, 5V power, USB, fiber under test
- All system control and measurement options provided via intuitive, user-friendly GUI
Applications
- Current-to-voltage conversions
- Chemical analyzers
- Mass spectroscopy
- Time of Flight (ToF)
- Fiber optic sensing

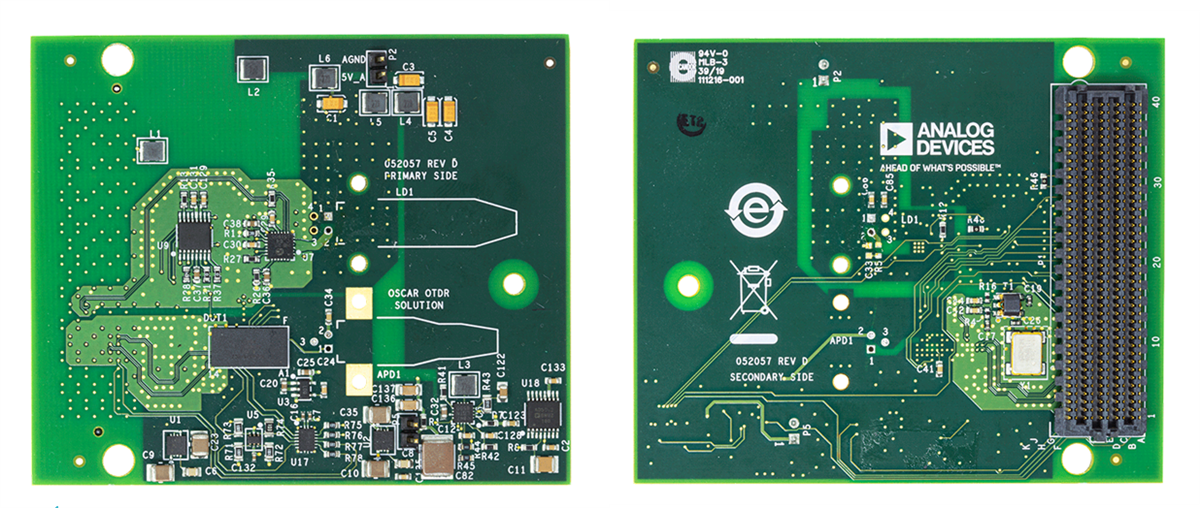

Board Layout
Evaluation System Overview
Additional Resources
Associated Products
Analog Devices Inc. ADA4355 Photodetector Receiver μModule®
Tamang-tama sa pagsukat ng mga current mula micro-amps hanggang pico amps at nasa isang maliit na form factor.
Associated Kit
AMD / Xilinx Kintex®-7 FPGA KC705 Evaluation Kit
Provides a hardware environment for evaluating designs targeting the Kintex-7 XC7K325T FPGAs.
