Asahi Kasei Microdevices Infrared LED Elements for NDIR Type Gas Sensors
Asahi Kasei Microdevices Infrared LED Elements for NDIR Type Gas Sensors are small mid-infrared light emitting diodes made of AlInSb and optimized for NDIR gas sensing applications. The Infrared LEDs implement a unique compound semiconductor technology at room temperature, achieving high radiant intensity, speed response, and reliability. The Asahi Kasei Infrared LED Elements include an internal mid-infrared photodiode for thermal compensations purposes.
Features
- High radiant intensity
- Φ = 60° Angle of half intensity
- Suitable for high-speed pulse current operation
- High reliability
- 2.6mm x 1.9mm x 0.4mm small surface mount type package
Applications
- NDIR gas sensor
- HVAC
- CO2 refrigerant leakage detection

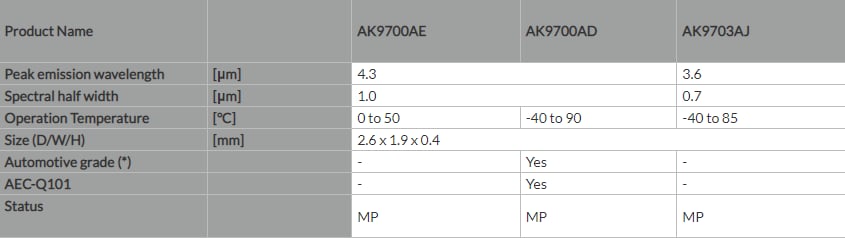

Comparison Chart

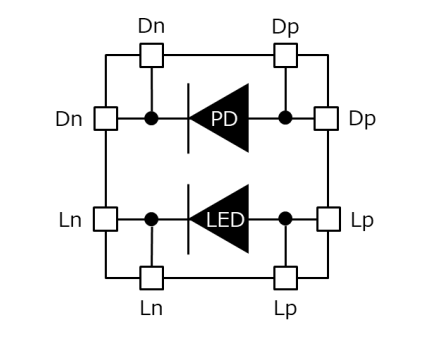

Block Diagrams
Associated Products
Asahi Kasei Microdevices Infrared Sensors for NDIR Type Gas Sensors
Features high sensitivity, speed response, and reliability with a built-in optical bandpass filter.
Asahi Kasei Microdevices Sensor Elements for NDIR type Gas Sensors
Infrared LEDs, sensors, and AFE ICs with a built-in infrared LED driver for NDIR-type gas sensors.
Asahi Kasei Microdevices AK9723AJ LED Driver/Sensor Analog Front End IC
Tamang-tama para sa NDIR gas sensing processing na gumagamit ng mga IR LED at IR photodetector.
Inilathala: 2022-11-02
| Na-update: 2024-04-09
