Critical Link MitySOM-C10G System-on-Modules

Critical Link MitySOM-C10G System-on-Modules are highly customizable and feature the Intel Cyclone 10 GX FPGA. The Critical Link MitySOM-C10G onboard modules have onboard power supplies, NOR FLASH, and DDR3L memory. Equipped with a NIOS II Softcore processor, the device provides a versatile CPU infrastructure for cost-effective embedded systems. Additionally, it supports upgrades like different FPGA densities, speed grades, and operating temperature ranges (commercial and industrial).

Features

  • Cyclone 10 GX FPGA – F780 package
    • Up to 220K Logic Elements (LE)
    • Up to 192x DSP logic blocks
    • Up to 300Mhz fabric clock
    • Up to 11.7Mb embedded memory
    • Up to 4x fractional synthesis PLLs
    • Up to 6x IO PLLs
  • Memory
    • Up to 1GB DDR3L at 7.45GB/sec
    • Up to 32MB QPSI NOR Flash
    • 4x banks of FPGA IO
    • 192x direct connect FPGA IO pins
    • 70x true LVDS pairs
    • 8x LVCMOS, LVDS, SSTL-18, and 1.8V HSTL IO standards supported
    • 8x clock input pins
    • Up to 12x transceiver pairs
    • Speeds up to 12.5Gbps
    • PCIe Gen2 x4 hard IP block
    • 4x clock inputs
  • Integrated power management
    • Single +5V input for on-board needs
    • Bank IO voltage configured for 1.8V
    • Bank IO reference voltage at 0.9V
  • Mechanical
    • 260-pin card edge connector
    • 144-pin board-to-board connector
    • Small 70mm (2.75") x 60mm (2.4")
  • Additional details
    • JTAG interface available on Edge connector
    • 2-channels of ADC input
    • Onboard 100MHz clock
    • Configuration status and general-purpose tri-color LEDs

Applications

  • Embedded co-processor
  • Test and measurement
  • Embedded instrumentation
  • Industrial automation and control
  • Industrial instrumentation
  • System IO expansion
  • Embedded Imaging

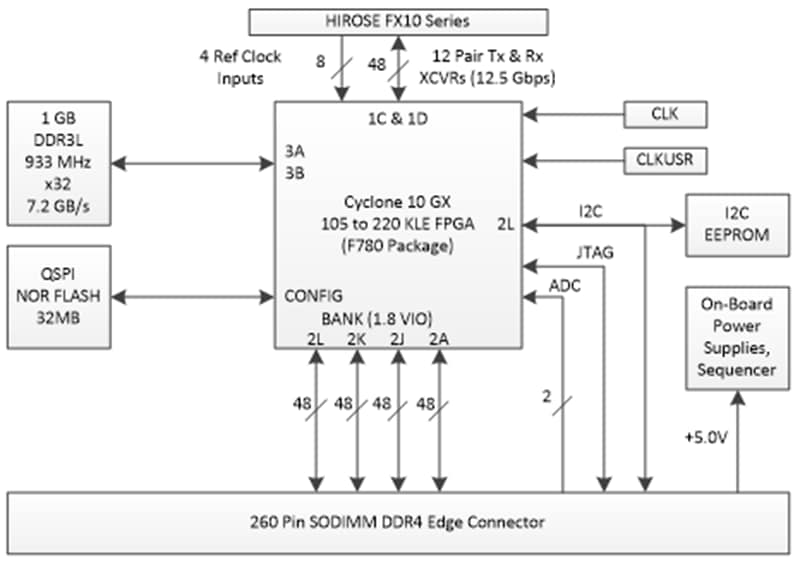

Block Diagam

Block Diagram - Critical Link MitySOM-C10G System-on-Modules
