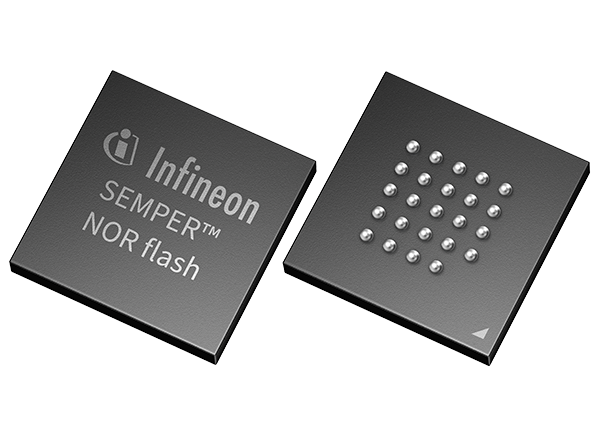

Infineon Technologies SEMPER™ NOR Flash Memory

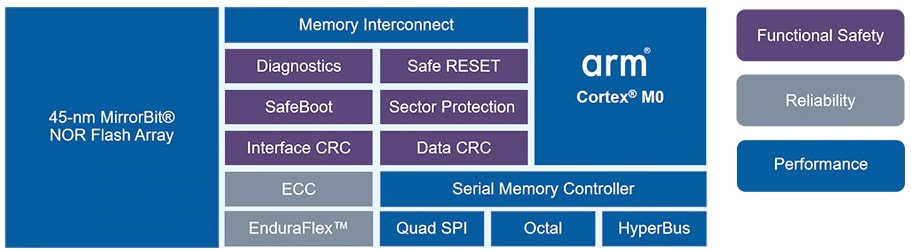

Infineon Technologies SEMPER™ NOR Flash Memory is a nonvolatile storage solution that integrates safety features for automotive and industrial systems. Applications include automotive instrument clusters, Advanced Driver Assistance Systems (ADAS), and networking communications. NOR Flash Memory meets automotive functional safety standards and is ASIL-B compliant and ASIL-D ready. The AEC-Q100 qualified device's EnduraFlex™ Architecture enables endurance of 1+ million program/erase cycles or data retention of 25 years at temperatures ranging from -40° C to +125° C. In addition, the device provides JEDEC xSPI-compliant Quad SPI, HYPERBUS™, and Octal interfaces.


  • EnduraFlex™ Architecture: Partition memory to provide up to 25-years data retention and 1+ million program/erase cycles endurance
  • JEDEC xSPI compatible
  • 1.8V to 3.0V operating voltage
  • Functional safety
    • ISO 26262 ASIL B Compliant
    • ISO 26262 ASIL-D ready
    • FMEDA and safety manual
    • Single error correction and double error detection (SECDED)
    • Data Integrity Check and Interface CRC
    • SafeBoot
  • Temperature range
    • -40°C to +125°C automotive Grade 1
    • -40°C to +105°C automotive Grade 2
    • -40°C to +85°C automotive Grade 3
    • -40°C to +105°C industrial-plus
    • -40°C to +85°C industrial
