Infineon Technologies TLE9879 EvalKit
Infineon Technologies TLE9879 EvalKit allows for the evaluation of all functions and peripherals of the TLE9879QXA40. The kit allows direct connection to a BLDC motor via MOSFETS in B6- Bridge configuration. The board includes a B6-Bridge for BLDC motor drive, UART and LIN for communication, direct access to all device I/Os and a J-Link debugger.
Features
- Input Type: DC
- Complete evaluation of all functions and peripherals of the TLE9879QXA40
- Allows direct connection to a BLDC motor via MOSFETS in B6- Bridge configuration
- Includes: B6-Bridge for BLDC motor drive, UART and LIN for communication, direct access to all device I/Os, and a J-Link debugger
- Automotive Qualification
Applications
- Motor Control and Drives
Associated Kit
Infineon Technologies MOTORCONTROLKIT_12V Motor Control Kit
A ready-to-use kit with MOTIX™ Embedded Power and XENISV™ Sensors.
Associated Tool
Infineon Technologies MOTIX™ Motor Bench
A BLDC motor test bench that combines boards and reference designs for motor control evaluation.

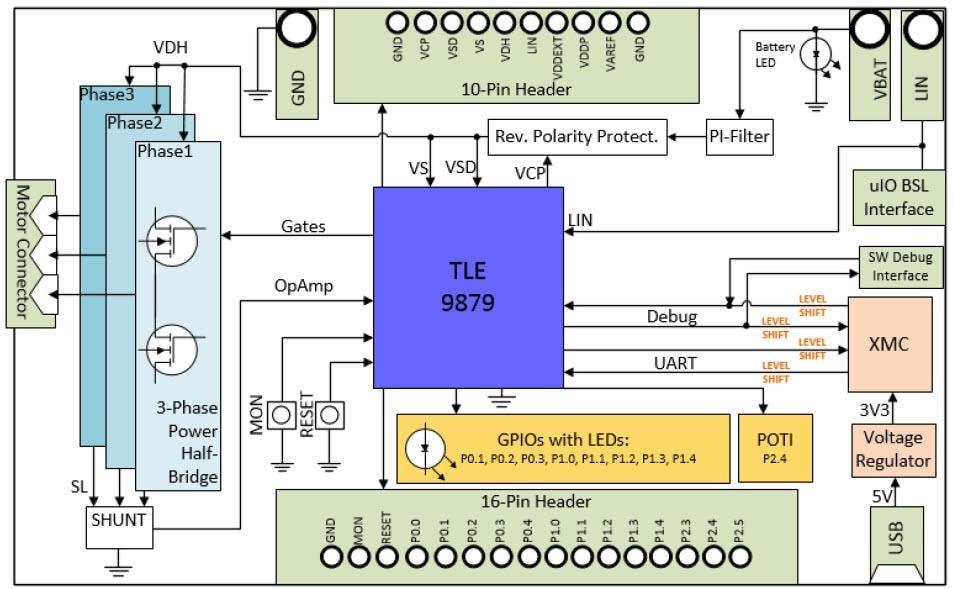

Block Diagram
