JKL Components ZRS Series LED Light Bars
JKL Components ZRS LED Light Bars are easy to mount on any flat surface and resist vibration and shock. These high-brightness, energy-efficient components feature a working voltage of 12V DC, a working current of 200mA, and an LED viewing angle of 120°. The PCB bars can be dimmed by lowering the voltage or by using a PWM dimmer. JKL Components ZRS LED Light Bars are ideal for a variety of lighting applications, including amusement, interior coves, signage, architectural, and emergency.Features
- Neutral white and cool white color options
- 120º viewing angle
- 30 LEDs per bar
- 12V DC voltage
- 200mA current
- 8mm x 480mm dimensions
- -25°C to +80°C operating temperature range

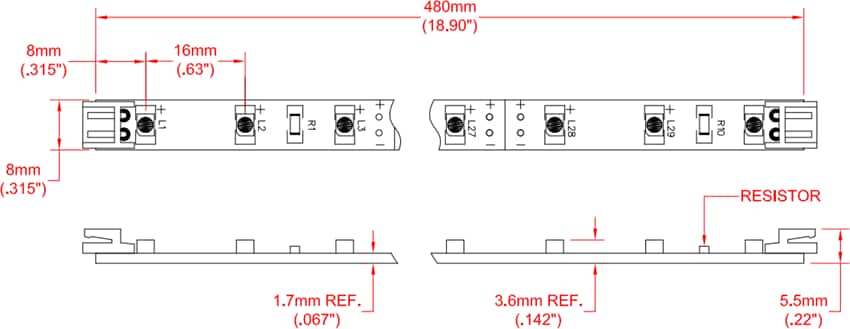

Mechanical Dimensions
