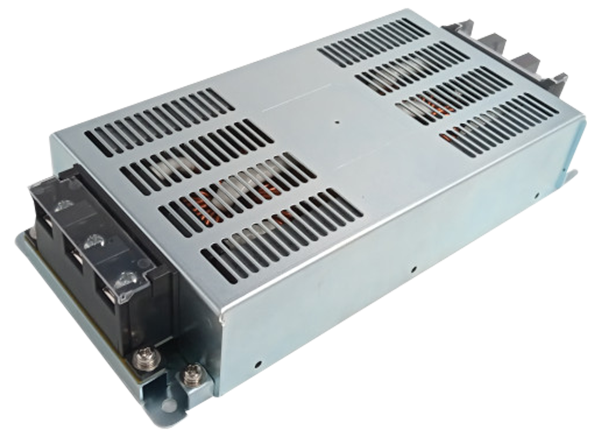

KEMET Three-Phase Metal Box EMI-RFI Filters
KEMET GTX Three-Phase Metal Box EMI-RFI Filters cover three-phase EMC requirements with various characteristics with current up to 100A. Using nanocrystalline core material, these filters achieve excellent attenuation characteristics in a compact size. In addition, three/six different combinations of Y capacitors can be selected to support various equipment topologies. These filters are compact and lightweight due to their high mechanical density. Applications include general-purpose inverters, machine tools, process automation, and industrial equipment.
Features
- 3-phase + neutral 500VAC
- Up to 100A current
- Nanocrystalline core material
- Selection of Y capacitor combinations
- Compact and lightweight
- Screw I/O terminal type
- UL, c-UL, and TÜV approved
- RoHS compliant
Specifications
- 500VAC (50/60Hz) and 500VDC rated voltages
- Up to 600MΩ minimum insulation resistance at 500VDC (1 minute, line to ground)
- Up to 105°C operating temperature
- 2800V withstanding voltage (1 minute, line to ground)
Applications
- Industrial equipment
- General-purpose inverters
- EV charging stations
- Process automation
- Machine tools
- Electronic equipment
