Lumileds LUXEON 5052 RGBW
Lumileds LUXEON 5052 RGBW is a 4-in-1 package that makes color tuning easier. Each channel of Lumileds LUXEON MultiColor Module 2.5W is individually addressable, enabling a large color gamut while simplifying the ability to get a precise color point.
Features
- RGBW 4-in-1 module
- Compact 5mm x 5mm package
- Individually control each channel
Applications
- Wall grazer
- Linear
- Wall wash
- Decorative
Product Performance
Optical Characteristics
Electrical & Thermal Characteristics
Maximum Ratings

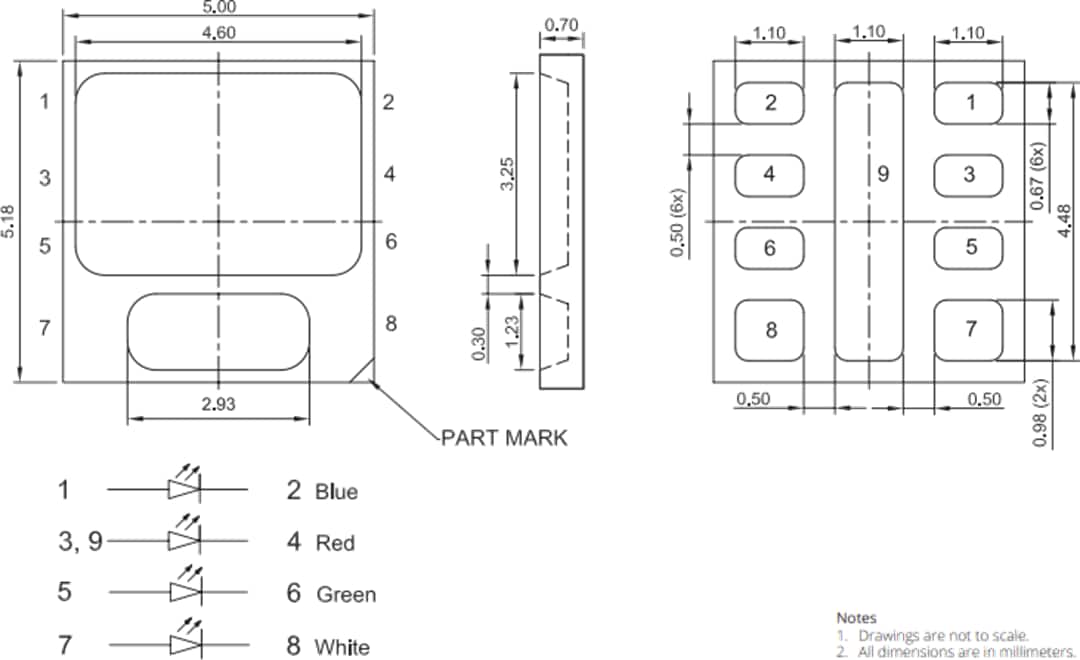

Package Outline
Related Products
Lumileds Color LEDs
Innovative lighting designs with a full spectrum of colors, including red, cyan, UV, lime, and mint.
View Results ( 8 ) Page
| Numero ng Piyesa | Datasheet | Paglalarawan |
|---|---|---|
| L1MC-RGB3080500MP0 |  |
Multi-Color LEDs RGBW, 3000 K, 80-CRI LUXEON MultiColor |
| L1MC-RGB2780500MP0 | |
Multi-Color LEDs RGBW, 2700 K, 80-CRI LUXEON MultiColor |
| L1MC-RGU3080500MP0 | |
Multi-Color LEDs RGBW, 3000 K, 80-CRI LUXEON MultiColor |
| L1MC-RGB5080500MP0 | |
Multi-Color LEDs RGBW, 5000 K, 80-CRI LUXEON MultiColor |
| L1MC-RGB4080500MP0 | |
Multi-Color LEDs RGBW, 4000 K, 80-CRI LUXEON MultiColor |
| L1MC-RGB6570500MP0 | |
Multi-Color LEDs RGBW, 6500 K, 70-CRI LUXEON MultiColor |
| L1MC-RGB2290500MP0 | |
Multi-Color LEDs RGBW, 2200 K, 90-CRI LUXEON MultiColor |
| L1MC-RGU4080500MP0 | |
Multi-Color LEDs RGBW, 4000 K, 80-CRI LUXEON MultiColor |
Inilathala: 2019-09-25
| Na-update: 2024-02-27
