MicroStrain by HBK 3DM-MV7-AR Gyro-Stabilized Inclinometer (IMU)
Microstrain by HBK 3DM-MV7-AR Gyro-Stabilized Inclinometer (IMU) delivers precision measurements of dynamic inclination, angular rate, and acceleration in challenging environments, such as those encountered by heavy-duty construction, off-highway, agricultural, and trucking vehicles. The 3DM-MV7-AR utilizes the power of a sophisticated auto-adaptive Extended Kalman Filter (EKF) to remove errors associated with vibration, sudden linear motions, and quake, resulting in a true reading of inclination under all conditions.
The Microstrain by HBK 3DM-MV7-AR features state-of-the-art temperature compensation and calibration, ensuring error-free performance over the full operational temperature range. The compact size, wide 4.5VDC to 36VDC power range, IP68/IP69K rating, and SAE J1939 communications protocol make the 3DM-MV7-AR a single-part solution for a full range of vehicle sizes and applications.
Features
- Six DOF gyro-stabilized inclinometer
- Full accuracy over the entire operational temperature range of -40°C to +85°C
- Auto-adaptive EKF provides superior dynamic accuracy
- Based on MicroStrain by HBK’s proven 7th generation industrial/aerospace solid-state MEMS gyro technology
- Compact and rugged reinforced PBT housing is fully sealed for immersion, pressure wash (IP68/IP69K)
- Low-cost, rugged, reliable AMPSEAL 16 connector
- Optional metal guard plate protects the sensor and connector, and allows connector insertion and removal
- SAE J1939 communication
- Simple sensor-to-vehicle frame alignment, install in any orientation
- Wide 4.5VDC to 36VDC power input range
- User-settable parameters
Applications
- Auto-steer and terrain compensation
- Dynamic incline detection (roll, pitch, rotation)
- Vehicle stability and levelling
- Platform control, alignment, and stabilization
- Bucket/stick/boom angle
- Impact detection
- Operator feedback
- Precision navigation
Specifications
- Integrated triaxial accelerometer and a triaxial gyroscope
- Pitch, roll, angular rate, and acceleration data outputs
- 0.25° RMS static accuracy
- 1.5° RMS dynamic accuracy
- 100Hz default (1Hz to 500Hz selectable) EFK output data rate
- ±90° range (pitch)
- ±180° range (roll)
- 78.9mm × 55.0mm × 23.5mm (LxWxH) dimensions
- 107grams weight
- +4.5VDC (min.), 12/24VDC (nom.), +36VDC (max.) power source
- 410mW (nom.) power consumption at 12VDC
- -40°C to +85°C operating temperature range
- PBT thermoplastic, reinforced enclosure material
- IP68 (immersion), IP69K (pressure wash) rated
- Vibration (random) meets MIL-STD-202G, Method 214A, test condition 1-B, 24hrs/axis
- Vibration (sweep) meets SAE J1455 Appendix A 10Hz to 2000Hz, 5g peak, 0.25 octave/min/axis
- Thermal shock of -40°C to +85°C, 60°C/min, five cycles
- Salt spray meets MIL-STD-202G, Method 101E Condition A (96 hours)
- Hot dunk of 5X for 30 mins at +85°C, 30 mins at ice bath, operating
- Mechanical shock drop meets SAE J1455 4.11.3.1; 1m onto concrete
- Mechanical shock operating meets MIL STD 202, M213B; 50g, 11ms, 1/2sine, 3x each axis; 18 total
- 1,658,495 hours MTBF (Telcordia method, GM/35C)
- AMPSEAL 16 connectors, four-position, gold-plated pins
- EMC meets ISO 13766-1:2018 and ISO 13766-2:2018, ISO 14982:2009
- RoHS, REACH, CE, and UKCA compliant

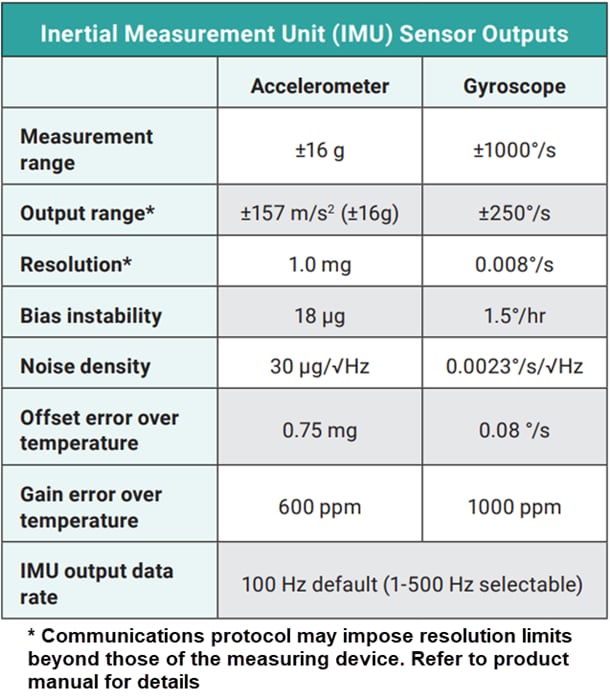

Sensor Outputs
