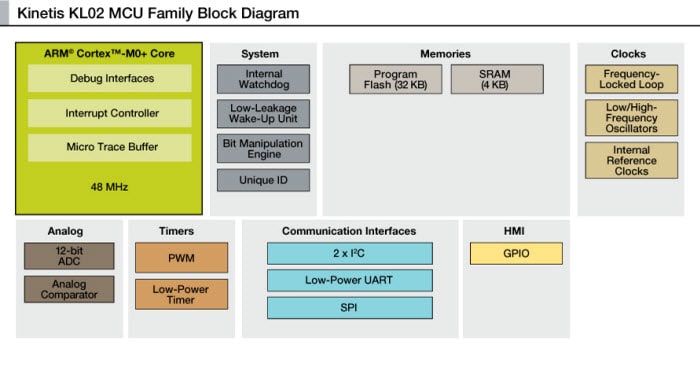

Freescale Kinetis KL02 CSP ARM Cortex-M0+ MCU

• 25% less PCB area than nearest competing product
• 60% more GPIO than nearest competing product
• 1.9 x 2.0mm² CSP
• 20 bumps, 0.4mm pitch

ARM Cortex-M0+

• 32-bit MCU performance
• Broad ARM ecosystem

• Ultra-efficient Cortex-M0+ processor
  touts industry leading throughput of
  15.9 CoreMark/mA
• Energy-saving architecture is optimized
  for low power with 90nm TFS
  technology, clock and power gating
  techniques, low power boot option, bit manipulation engine, peripheral bridge
  crossbar and zero wait state flash
  memory controller
• Several, flexible power modes fit for
  different application use cases designed
  to maximize battery life
• Energy-saving peripherals function in
  deep sleep modes & can make
  intelligent decisions and process data
  without waking up core

• Ultra-low-power Cortex-M0+ to get
  the work done quickly and get back
  to sleep
• 32KB Flash and 4KB RAM
• 12-bit ADC and high speed comparator
• Abundant connectivity including a
  2xI²C, low power UART and SPI adds flexibility to your designs
• Low power timers to minimize system
  power
• Easy to use with compatibility with
  Freescale Freedom development
  platform, complimentary Processor
  Expert and Solution Advisor as well
  as the ability to leverage ARM's comprehensive ecosystem
