onsemi NSDP301MX3 Single PIN Diode
onsemi NSDP301MX3 Single PIN Diode features low rs characteristics in attenuator, RF switch, and high-frequency applications. The NSDP301MX3 provides a compact, miniature X3DFN2 package intended for space-saving and efficient designs. The design and features of the onsemi NSDP301MX3 Single PIN Diode achieve higher efficiency while requiring fewer parasitic components.
Features
- Low series resistance (rs = 1.3Ω typ.)
- Small interterminal capacitance (C = 0.33pF typ.)
- Less parasitic components
- Small-sized package X3DFN2
- Pb-free, halogen-free, and RoHS compliance
Applications
- RF Attenuator
- RF Switch

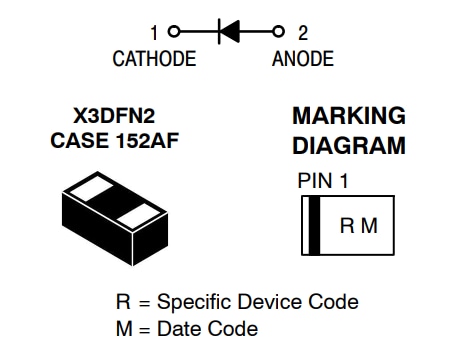

Package Style
