Qorvo QPC7334 Variable Equalizers
Qorvo QPC7334 Variable Equalizers are high-linearity equalizers that operate from 5MHz to 684MHz frequency bandwidth. Qorvo QPC7334 Variable Equalizers consume low power, offer a 16dB slope range and low insertion loss, and operate at a 5V single supply voltage. These variable equalizers come in a 14-pin 6mm x 6mm x 1.375mm package and are ideal for CATV amplifiers and transmission systems.
Features
- 5MHz to 684MHz operational bandwidth range
- 16dB slope range
- Low insertion loss
- High linearity
- 75Ω impedance for CATV applications
- 5V single supply voltage
- Low power consumption
Applications
- CATV amplifiers
- Transmission systems

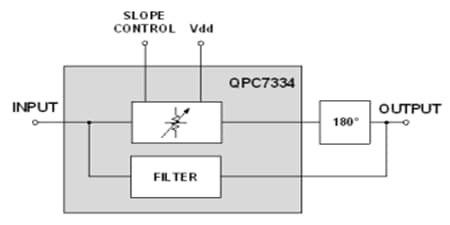

Functional Block Diagram
Mechanical Drawing
Related Products
Qorvo QPC7334 RF Development Tool
Designed to evaluate QPC7334 variable equalizers that operate from 5MHz to 684MHz bandwidth.
Qorvo QPC7336 Variable Equalizer
Provides high linearity, low insertion loss, and 45MHz to 1218MHz operational bandwidth.
