Menlo Micro MM5622 64Gbps Dual DP3T Switches
Menlo Micro MM5622 64Gbps Dual DP3T Switches are designed for high-speed signal switching in PCIe Gen 5, Gen 6, SerDes, and other standards. The Menlo Micro MM5622 switches are built on Menlo's Ideal Switch® technology. The devices operate at 64Gbps with a 20GHz bandwidth, offering low insertion loss, fast switching, and over 3 billion switching cycles.
The system-in-package (SiP) integrates the switch driver, charge pump, and decoupling capacitors, reducing the board footprint. Controlled via SPI or GPIO interfaces, the MM5622 is ideal for high-volume production testing in smartphones, graphics, network processors, microprocessors, accelerators, and high-speed memory products. It supports high-speed differential data applications and enables efficient parallel testing in space-constrained environments.
Features
- DC to 20GHz range
- DP3T (differential mode) with loopback mode
- Normally open, reflective actuator
- Fully controllable ports for low, medium, and high data rate signal routing
- Low -1.1dB insertion loss at 16GHz
- Integrated charge pump and driver eliminates the requirement for external biasing and driver circuitry
- Greater than 3 billion switching operations

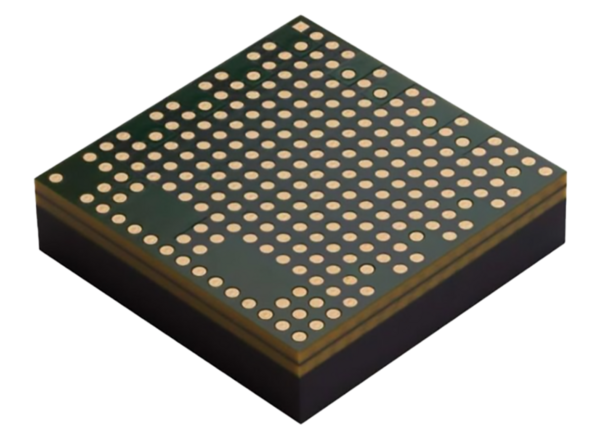

- 8.2mm x 8.2mm LGA package
Applications
- High-speed data digital component testing
- Optical-electrical module testing
- High-speed signal routing
- ATE device interface boards
- Optical-electrical module testing
- Differential switch matrices

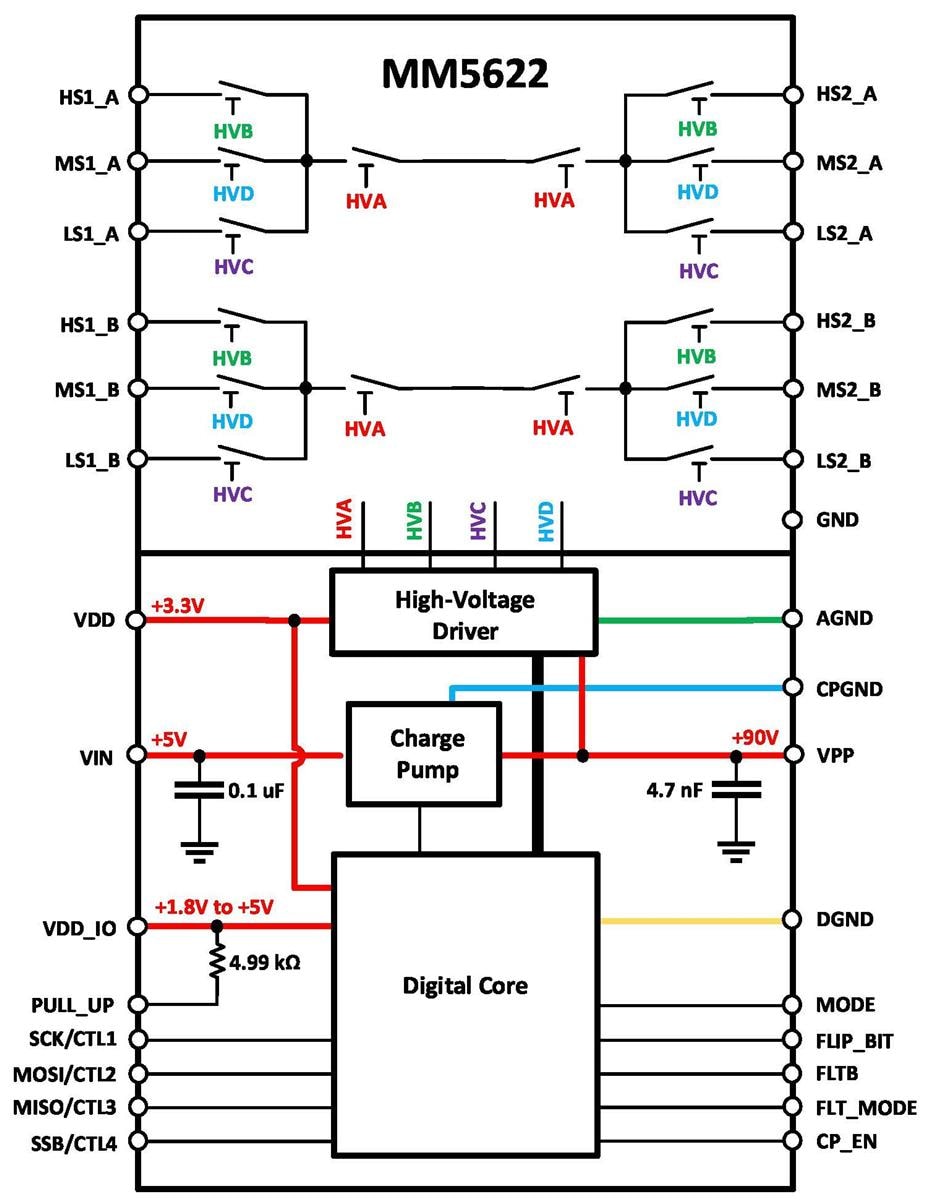

Block Diagram
Evaluation Kits
Menlo Micro MM5620 & MM5622 Evaluation Kits
User-friendly boards that provide access to the HSx and MSx channels of the MM5620/MM5622.
