ROHM Semiconductor CSL1104WBx White LEDs
ROHM Semiconductor CSL1104WBx White LEDs deliver a high luminous intensity of 2.0cd in an ultra-compact 0603 size. The CSL1104WBx White LEDs improves designs with high-density mounting and a compact size. The ROHM CSL1104WBx White LEDs have subdivided the chromaticity rank system, simplifying the color adjustment process and reducing application development effort.
Features
- 0603 compact size
- High intensity reflector type
- Improved color variation
Additional Resources
Chromaticity Distribution
High 2.0cd Brightness
Ultra-compact High Brightness
Dimensions

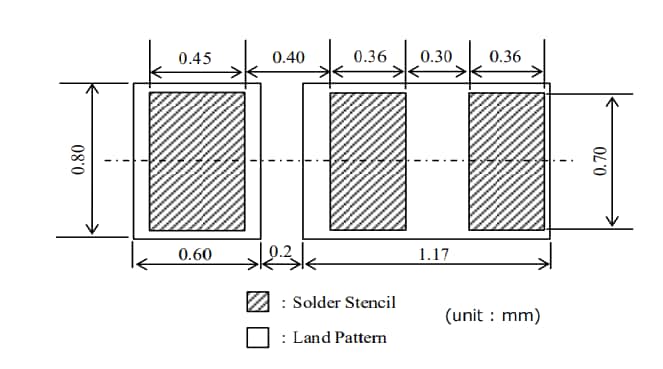

Recommended Solder Pattern
View Results ( 4 ) Page
| Numero ng Piyesa | Datasheet | Kulay ng Illumination | If - Forward Current | Hugis ng Lens |
|---|---|---|---|---|
| CSL1104WBAW1 |  |
White | 20 mA | Rectangular |
| CSL1104WBBW1 | |
White | 20 mA | Rectangular |
| CSL1104WBDW1 | |
White | 20 mA | Rectangular |
| CSL1104WBCW1 | |
White | 20 mA | Rectangular |
Inilathala: 2021-03-31
| Na-update: 2022-03-11
