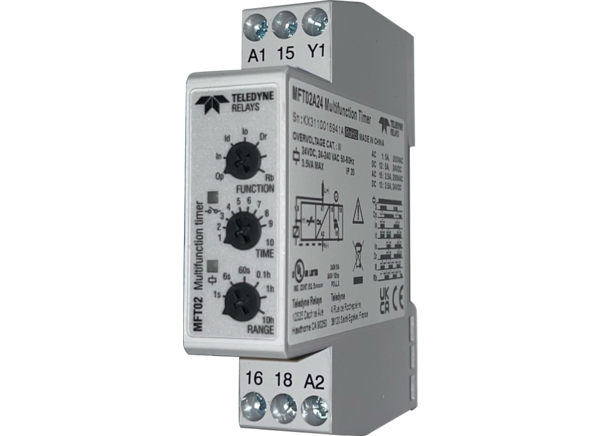

Teledyne Relays MFT02Ax Multi-Function Timers

Teledyne Relays MFT02Ax Multi-Function Timers are designed for DIN-rail mounting. These timers feature seven knob-selectable functions and seven knob-selectable time ranges from 0.1s to 100h. The MFT02Ax timers also feature ≤0.2% repeatability, automatic or manual start, 250V_AC (RMS) rated insulation voltage, and ≤5% setting accuracy. These timers offer a 17.5mm housing width in an SPDT configuration, suitable for front and back panel installation. The MFT02Ax timers are compatible with 24V_DC, 24V_AC to 240V_AC, or 12V_AC/DC to 240V_AC/DC power supply range.

Features

0.1s to 100 hours selectable time range
≤0.2% repeatability
Automatic or manual start
250V_AC (RMS) rated insulation voltage
≤5% setting accuracy
For mounting on DIN-rail in accordance with DIN/EN/EC 60715

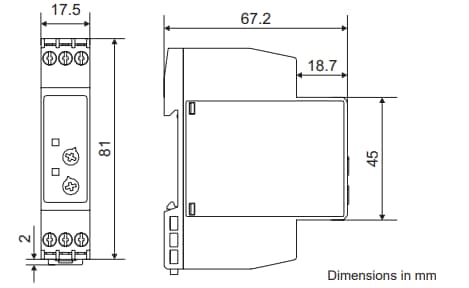

17.5mm DIN-rail housing (DIN 43880)
Combined AC and DC power supply
≥30 x 10⁶ operations (mechanical life)

7 knob-selectable functions:
- op - delay on operate
- In - interval
- Io - interval on trigger open
- Id - double interval
- R - symmetrical recycler ON first
- Rb - symmetrical recycler OFF first
- Dr - delay on release
