Texas Instruments ADS131M08EVM Evaluation Module
Texas Instruments ADS131M08EVM Evaluation Module is designed to evaluate the ADS131M08 ADC. The ADS131M08 is a low-power, 8-channel, simultaneous-sampling, delta-sigma analog-to-digital converter (ADC).
The Texas Instruments ADS131M08EVM Kit includes the ADS131M08EVM board and a precision host interface (PHI) controller board that enables the accompanying computer software.
Features
- Onboard 3.3V unipolar analog supply
- Onboard 3.3V unipolar digital supply
- Digital header pins to connect to host microcontroller and logic analyzer
- Onboard 8.192MHz crystal oscillator
- Terminal blocks and header pins to connect external analog input signals
- USB powered; no external power supply required
- Optional external voltage reference (not installed)
Kit Contents
- ADS131M08 evaluation module
- PHI controller board
- USB cable
Layout

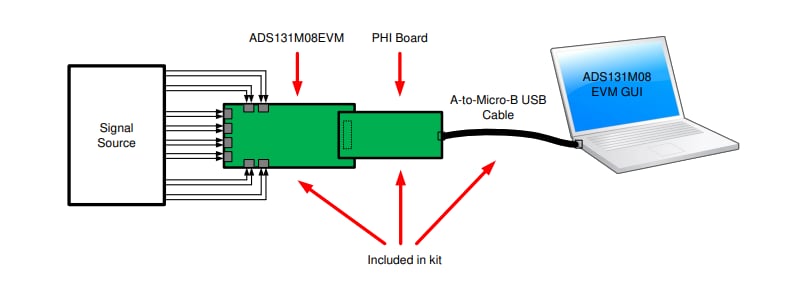

System Connection for Evaluation
Related Products
Texas Instruments ADS131M06/ADS131M06-Q1 6-Channel Delta-Sigma ADC
Delta-sigma ADC offers a wide dynamic range, low-power, and energy-measurement-specific features.
Texas Instruments ADS131M08/ADS131M08-Q1 8-Channel Delta-Sigma ADC
Delta-sigma ADC offers a wide dynamic range, low-power, and energy-measurement-specific features.
