Texas Instruments SNx4AHC541/SNx4AHC541-Q1 Octal Buffer/Drivers

Texas Instruments SNx4AHC541/SNx4AHC541-Q1 Octal Buffer/Drivers are designed for driving bus lines or buffer memory address registers. The buffer/drivers offer inputs and outputs on opposite sides of the package to streamline printed circuit board layout. The TI SNx4AHC541-Q1 devices are AEC-Q100 qualified for automotive applications.

Features

  • Qualified for automotive applications
  • Operating range of 2V to 5.5V VCC
  • Latch-up performance exceeds 250mA per JESD 17

Applications

  • Enable or disable a digital signal
  • Eliminate slow or noisy input signals
  • Hold a signal during controller reset
  • Debounce a switch

Datasheets

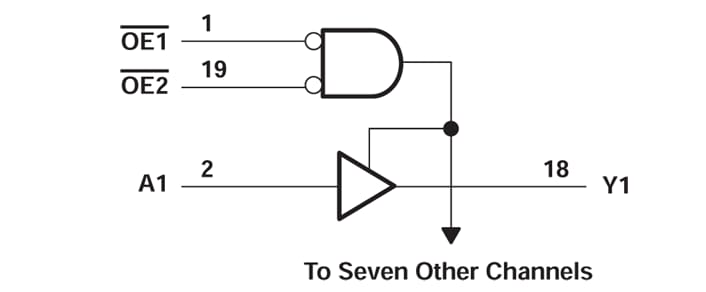

Logic Diagram (Positive Logic)

Location Circuit - Texas Instruments SNx4AHC541/SNx4AHC541-Q1 Octal Buffer/Drivers

Dev Tools

Texas Instruments 14-24-LOGIC-EVM Logic Evaluation Module (EVM)

Generic evaluation module developed to support any TI logic leaded device in a 14 to 24 pin count.

Learn Moretungkol sa Texas Instruments 14-24-LOGIC-EVM Logic Evaluation Module (EVM) View Productskaugnay ng Texas Instruments 14-24-LOGIC-EVM Logic Evaluation Module (EVM)

Texas Instruments 14-24-NL-LOGIC-EVM Logic Evaluation Module (EVM)

Supports any logic or translation device in a BQA, BQB, RGY (14-24 pin), RSV, RJW, or RHL package.

Learn Moretungkol sa Texas Instruments 14-24-NL-LOGIC-EVM Logic Evaluation Module (EVM) View Productskaugnay ng Texas Instruments 14-24-NL-LOGIC-EVM Logic Evaluation Module (EVM)
